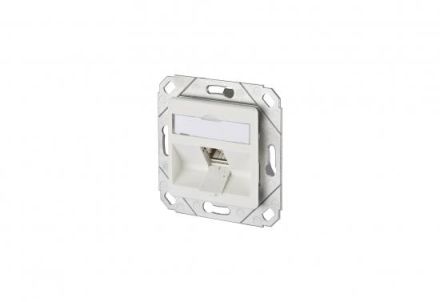

METZ CONNECT 1 Port 270° UPk RAL9010 C6A Module ISO, 130B12D11102-E

In stock
SKU: 483212
€11.57
Into a basketIn the basketGo

Overview

Channel connection unit with C6, Amodul 270°, GHMT Cat.6, A re-embedded PVP validated, Cat.6, A component test according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validated, compliance with class E, A up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, tested: component up to 600 MHz, link up to 800 MHz, for 10GBit Ethernet (IEEE 802.3an), remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT suitable, connection of data cables AWG 26/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, plug-in direction of the module inclined 45° downwards, strain relief with locking clip on the charging piece, with viewing window for enclosed label insert, label sheet 209 x 294 mm see accessories, integrated dust protection flaps (also available in color), cover parts pure white RAL 9010, surface matt structured, compatible with design central pieces of switch ranges (note 3 port central pieces currently only available from JUNG), suitable for installation in standard flush-mounted and hollow wall cups, except variant 3 port!, variants: 1 port, 2 port, 3 port

Feature Value
Category: 6A (IEC)
Color: white
RAL number: 9010
Connection type: Insulation displacement terminal IDC
Sockets shielded: yes
Housing shielded: yes
Separate earth connection: no
With text field: yes
Design capable: yes
Separate cable strain relief: yes
Surface-mounted: no
Outlet direction: slanted
With dust protection: yes
Terminal resistor: no
Color coding: yes
Device width: 69.90
Device height: 69.90
Device depth: 48.50
Flush-mounted: yes
Duct installation: yes
Floor tank/underfloor installation: no
Fastening type: screws
Composition: Base element with central cover plate
Connector type: RJ45 8 (8)
With bushings/couplings: yes
Suitable for number of bushings/couplings: 1

Characteristics

With text fieldYes
Category6A (IEC)
Connector typeRJ45 8 (8)
HAB1 Port 270° UPk RAL9010
ManufacturerMETZ CONNECT
HAN130B12D11102-E
GTIN4250184131885
Connection typeInsulation displacement terminal IDC
Outlet directionAslant
Mounting typeScrew
Shielded socketsYes
ColorWhite
Suitable for number of sockets/couplings1
Housing shieldedYes
Device width69.90
Device height69.90
Device depth48.50
With bushings/couplingsYes
With dust protectionYes
RAL number9010
CompilationBase element with central cover plate
