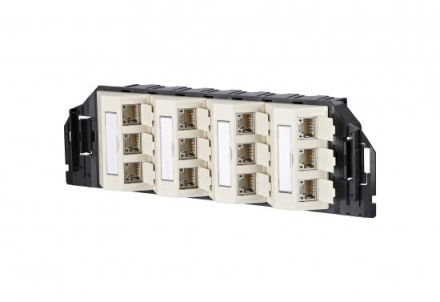

Connection unit for installation in device inserts in the underfloor area, suitable for underfloor device inserts from OBO Bettermann (Ackermann) and individual types from :hager (Electraplan Solutions), design GB3, with C6, Amodul 180° GHMT Cat.6, A re-embedded PVP validatedCat.6, A component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validatedCompliance with class E, A up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 tested: Component up to 600 MHz, link up to 800 MHz, suitable for 10GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, connection of data cables AWG 26/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, migration to 25G systems without the need for special tools, including module carrier, cover caps and blind covers, plug-in direction of the modules inclined 45° upwards, with viewing window for enclosed label insert, label sheet 209 x 294 mm see accessories, integrated dust protection flaps (also available in color), color: device cup black, cover parts pearl white, variants: 3 port, 6 port, 9 port, 12 Port
| Property | Value |
| Category: | 6A (IEC) |
| Color: | cream white (electric white) |
| RAL number: | 1013 |
| Connection type: | Insulation displacement terminal IDC |
| Sockets shielded: | yes |
| Housing shielded: | yes |
| Separate earth connection: | no |
| With text field: | yes |
| Designable: | yes |
| Separate cable strain relief: | yes |
| Surface-mounted: | no |
| Outlet direction: | slanted |
| With dust protection: | yes |
| Terminal resistor: | no |
| Color coding: | yes |
| Device width: | 208.00 |
| Device height: | 73.00 |
| Device depth: | 54.50 |
| Flush-mounted: | no |
| Duct installation: | no |
| Floor tank/underfloor installation: | yes |
| Fastening type: | screws |
| Composition: | Base element with full cover plate |
| Connector type: | RJ45 8 (8) |
| With sockets/couplings: | yes |
| Suitable for number of sockets/couplings: | 12 |
