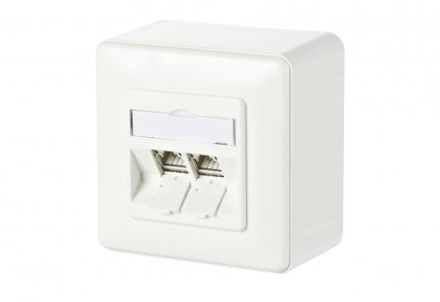

Surface-mounted connection unit with C6, Amodul 180°, GHMT Cat.6, A re-embedded PVP validated, Cat.6, A component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validated, compliance with class E, A up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, tested: component up to 600 MHz, link up to 800 MHz, for 10GBit Ethernet (IEEE 802.3an), remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT suitable, connection of data cables AWG 26/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, special tool-free migration to 25G systems, plug-in direction of the module inclined 45° downwards, strain relief with locking clip on the charging piece, with viewing window for enclosed label insert, label sheet 209 x 294 mm see accessories, integrated dust protection flaps (also available in color), cover parts pure white RAL 9010, matt structured surface, variants: 1 port, 2 port, 3 port
| Property | Value |
| Category: | 6A (IEC) |
| Color: | white |
| RAL number: | 9010 |
| Connection type: | Insulation displacement terminal IDC |
| Sockets shielded: | yes |
| Housing shielded: | yes |
| Separate earth connection: | no |
| With text field: | yes |
| Designable: | yes |
| Separate Cable strain relief: | yes |
| Surface-mounted: | no |
| Outlet direction: | slanted |
| With dust protection: | yes |
| Terminal resistor: | no |
| Color coding: | yes |
| Device width: | 85.60 |
| Device height: | 85.60 |
| Device depth: | 51.00 |
| Flush-mounted: | yes |
| Duct installation: | yes |
| Floor tank/underfloor installation: | no |
| Fastening type: | screws |
| Composition: | Base element with complete housing |
| Connector type: | RJ45 8 (8) |
| With sockets/couplings: | yes |
| Suitable for number Bushings/couplings: | 2 |
