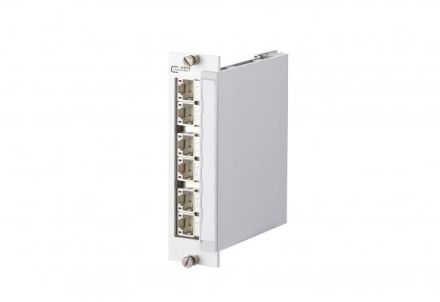

Module carrier with 6 individual modules C6, Amodul 180°, GHMT Cat.6, A re-embedded PVP validated, Cat.6, A component test according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validated, compliance with class E, A up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, tested: component up to 600 MHz, link up to 800 MHz, for 10GBit Ethernet (IEEE 802.3an) , Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT suitable, connection of data cables AWG 26/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, special tool-free migration to 25G systems, strain relief via snap-in clip directly on the charging piece of the C6, Amodul, 3HE module carrier front made of silver anodized aluminum for installation in 3HE subracks, with viewing window for enclosed label inserts, additional strain relief possible using cable ties, grounding bolt M6 x 10 with nut and toothed washer
| Property | Value |
| Mounting type: | 482.6 mm (19 inch) installation |
| Height: | 128.5 |
| Width: | 35 |
| Depth: | 108 |
| Number of sockets/couplings: | 6 |
| Suitable for number of sockets/couplings: | 6 |
| Connector type: | RJ45 8 (8) |
| Shielded: | yes |
| Category: | 6A (IEC) |
| Connection type: | Insulation displacement terminal IDC |
| Number of height units (HE): | 3 |
| Color: | Silver |
