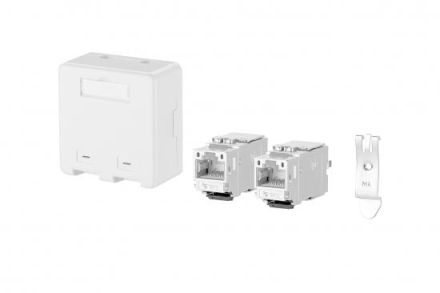

METZ CONNECT APL C6Amodul K 180° Set 2 Port Connection Box, 130B21D2APL-E

For the connection of the termination point meter panel in the APZ room of the termination point line network (APL), equipped with C6, Amodul K 180°suitable for mounting on the mounting rail in the meter panel of the general power supply below the cover in the room for additional applications according to VDE-AR-N 4100, touch-safe with integrated dust protection slide, not sealable, for connecting a MUC communication module, GHMT Cat.6, A re-embedded PVP validatedCat.6, A component test according to ISO/IEC 11801-1, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT validatedCompliance with Class E, A up to 500 MHz according to ISO/IEC 11801-1, DIN EN 50173-1tested: component up to 600 MHz, link up to 800 MHz, suitable for 10GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, connection of data cables AWG 26/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, special tool-free migration to 25G systems, plug-in direction of the module inclined at 90° to the mounting rail, strain relief with locking clip on the charging piece, with viewing window for enclosed label insert, cover parts pure white RAL 9010, glossy surface, variants: APZ 1 port, APZ 2 port
