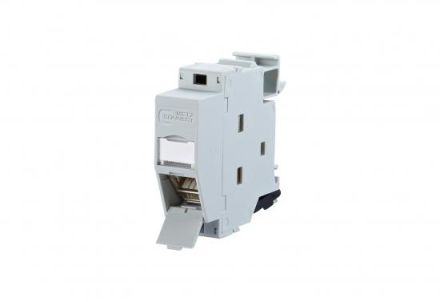

Connection unit for mounting on a TH35 mounting rail in accordance with DIN EN 60715 in electrical distributors for domestic and industrial installations, equipped with a C6, Amodul 270° RJ45 single module, cable access 45° from below, plug direction inclined 45° downwards, GHMT Cat.6, A re-embedded PVP validated, Cat.6, A component test in accordance with ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validated, compliance with class E, A up to 500 MHz in accordance with ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, tested: component up to 600 MHz, link up to 800 MHz, suitable for 10GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy-to-install connection of data cables AWG 26/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, marking of the wire assignment T568A and T568B directly on the charging piece, the overall width of 1TE enables the installation of up to 12 REGplus in standard electrical distribution boards, when installed as a device of protection class I, the potential equalization takes place via an integrated potential equalization plate directly above the mounting rail, which is to be connected to the building potential equalization via corresponding contact terminals, the module is protected against direct contact by a cover. When installed in protectively insulated distributors, protection class II is maintained. For this, the potential equalization spring must be removed., integrated dust protection flap (also available in color)
| Property | Value |
| Mounting type: | DIN rail TH35 |
| Design of the mounting rail adapter: | straight |
| Material: | metal |
