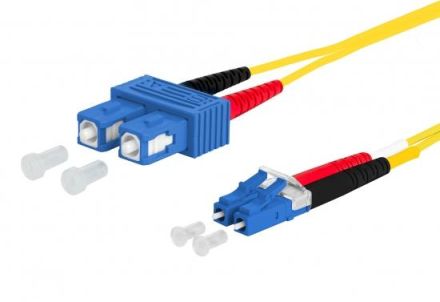

Singlemode patch cable IV (ZN) H E9/125 OS2 Singlemode fiber OS2, E9/125 m bend-insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2 compatible with G.652.D Outer diameter 2.0 x 4.2 mm Sheath material halogen-free with low smoke development LSHF-FR, flame retardant Duplex cable as zipcord (Figure 8) with two tight buffered conductors and aramid as strain relief Machine-made end face polish 100% tested Colors may vary slightly for production reasons Maximum length 20 m Patch cable available with all combinations of the connector types LC-D, SC-D, ST and E2000, also with APC polish (except ST), other connector types on request Available in different lengths - replace xx in the article number with the length. According to the scheme: 10 = 1.0 m 20 = 2.0 m 50 = 5.0 m A0 = 10 m B0 = 20 m
