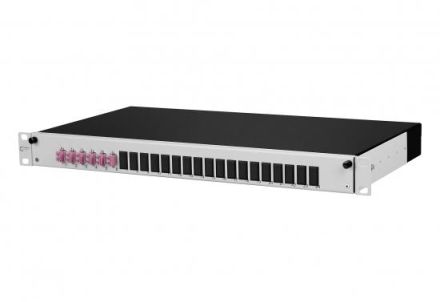

METZ CONNECT OpDAT slide 6x LC-D OM4 splice patch panel, 1502677506-E

In stock
SKU: 483548
€166.89
Into a basketIn the basketGo

Overview

19 inch, 1U fiber optic patch panel pull-out splice tray/front panel in RAL 7035 equipped with LC-D couplings and LC pigtails Pigtails with compact core 0.9 mm, 12 colors, secondary and primary coating the same color, length 2.0 m Pigtails inserted and set aside in standard splice cassette with crimp splice holders Pigtails cleaned and inserted into couplings Pull-out can be tilted and completely removed for better assembly (pull-out stop) Unused cut-outs closed with blind plugs Installation depth 240 mm (without screw connection and without couplings) Several cable entry options on the rear (fastening with PG13.5, PG16 and PG21 or M20 and M25) A PG16 cable entry is included Variants: equipped with 6, 12 or 24 LC-D couplings and pigtails, each in blue (OS2), heather violet (OM4), aqua (OM3) or 6, 12 or 24 LC-D APC couplings and pigtails each in green (OS2)

Property Value
Connector type outside: LC-Duplex
Connector type inside: LC-Duplex
Color: gray
RAL number: 7035
Mounting type: 482.6 mm (19 inch) installation
Number of height units (HE): 1
Height: 44.45
Width: 482.60
Depth: 244.00
Suitable for number of couplings/adapters: 24
With number of couplings/adapters: 6
With front panel: yes
With housing: yes
With pigtails: yes
Fiber type: Multimode 50/125
Fiber class: OM4
APC version: no

Characteristics

HABOpDAT slide 6x LC-D OM4 splice
ManufacturerMETZ CONNECT
HAN1502677506-E
GTIN4250184172536
Width482.60
ColorGray
Height44.45
Mounting type482.6 mm (19 inch) installation
RAL number7035
Depth244.00
METZ CONNECT OpDAT slide 6x LC-D OM4 splice patch panel, 1502677506-E
METZ CONNECT OpDAT slide 6x LC-D OM4 splice patch panel, 1502677506-E
€166.89
Into a basketIn the basketGo
