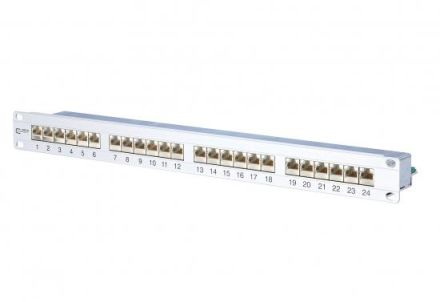

19 inch 1U carrier made of silver anodized aluminum, with 24 individually shielded RJ45 sockets, GHMT Cat.6 12C-de-embedded validated, compliance with Class E, A channel link according to ISO/IEC 11801-1, DIN EN 50173-1 tested: channel link up to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, the wire pairs can be led to the LSA terminal without unravelling the stranding, connection of the 2- to 4-pair data lines to LSA insulation displacement terminals (AWG 22-24). With marking of the wire colors according to TIA/EIA 568A. Additional strain relief possible using cable ties, modules connected using a ground rail
