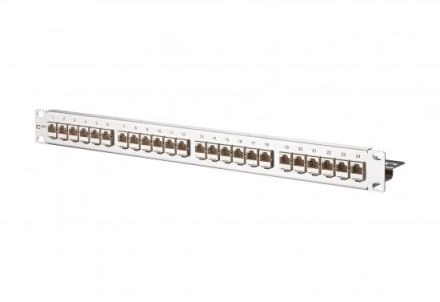

19 inch 1U stainless steel module carrier with 24 E-DAT module individual modules, Cat.6, A component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validatedCompliance with Class E, A according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09Tested: Link up to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy-to-install connection of the 2- to 4-pair data cable AWG 26/1 - 22/1 and stranded conductor with 7-wire copper strand AWG 26/7 - 22/7 to BTR 8-way IDC insulation displacement terminals, marking of the wire assignment T568A or T568B, integrated cable clamp, additional strain relief possible, grounding bolt M6 x 10 with nut and toothed washer, including 30 cm grounding cable, all fully shielded modules connected by means of a grounding bar
