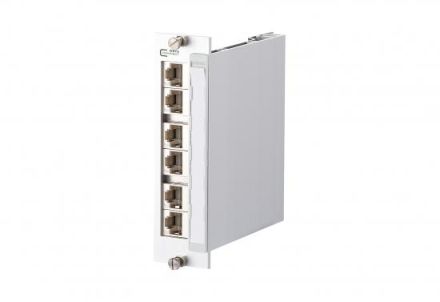

Module carrier with 6 E-DAT module individual modules, Cat.6, A component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT validatedCompliance with class E, A according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09Tested: Link up to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy-to-install connection of the 2 to 4-pair data cable AWG 26/1 - 22/1 and stranded conductor with 7-wire copper strand AWG 26/7 - 22/7 on BTR 8-way IDC insulation displacement terminals, marking of the wire assignment T568A or T568B, strain relief via cable ties directly on the charging piece of the E-DAT module, 3HE module carrier front made of silver anodized aluminum for installation in 3HE subracks, with viewing window for enclosed label inserts, additional strain relief possible using cable ties, grounding bolt M6 x 10 with nut and toothed washer
