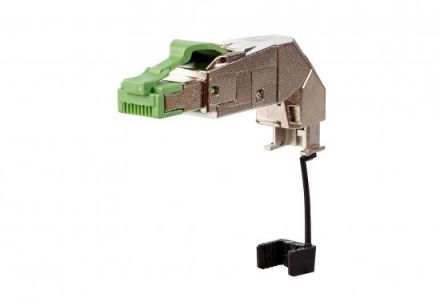

Field-assembly RJ45 connector Cat.5/Class D, fully shielded and multiport capable, variable cable feed, freely selectable (360°), extremely simple assembly - can be connected without special tools, wire connection stranded conductor AWG 27/7 - 22/7, wire diameter 0.46 - 0.76 mm, wire connection tight-core AWG 26/1 - 22/1, wire diameter 0.4 - 0.64 mm, transmission properties Cat.5 according to ISO/IEC 11801 Ed.2.2:2011-06, compliance with Class D according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, 100 MBit suitable according to IEEE 802.3, for remote powering (PoE and PoE plus) and HDBaseT, protection class IP20, suitable for cable sheath diameters from 5.5 to 10.5 mm, industrial-grade housing made of die-cast zinc, strain relief via snap-in clip directly on the charging piece, protected locking hook, reconnectable
