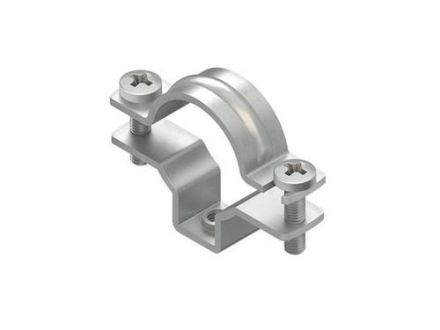

Pipe and cable spacer clamp, with internal connection thread M 6, for cables and electrical installation pipes in accordance with DIN EN 61386-21, when mounting on push-through anchor DAM 6X... or screw anchor NSA 6X55/SW10-M6, care must be taken to ensure that the connection thread of the push-through anchor does not protrude into the terminal space of the cable, for screwing onto screw dowels with a thread length of up to 8 mm. For use in functional maintenance, please observe additional regulations! Dimensions (approx. dimensions) W x L : 14 x 53 mm Internal connection thread : M 6 for cable Ø : 19 - 24 mm for metric electrical installation pipes in accordance with DIN EN 60423 : M 20 Material : steel, hot-dip galvanized in accordance with DIN EN ISO 1461 Screw material : stainless steel, material no. 1.4301, 1.4303 Niedax model no. : 852 G F
