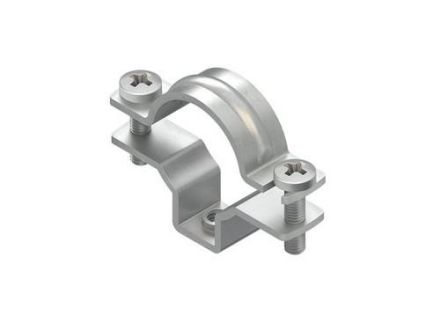

Niedax 853GE5 853 G E5 M6 stainless steel for cable 24-29mm pipe spacing clamps

In stock
SKU: 785948
€6.87
Into a basketIn the basketGo

Overview

Pipe and cable spacer clamp, with internal connection thread M 6, for cables and electrical installation pipes in accordance with DIN EN 61386-21, when mounting on push-through anchor DAM 6X... or screw anchor NSA 6X55/SW10-M6, care must be taken that the connection thread of the push-through anchor does not protrude into the terminal space of the cable, for screwing onto screw dowels with a thread length of up to 8 mm. For use in functional maintenance, please observe additional regulations! Dimensions (approx. dimensions) W x L : 14 x 59 mm Internal connection thread : M 6 for cable Ø : 24 - 29 mm for metric electrical installation pipes in accordance with DIN EN 60423 : M 25 Material : stainless steel, material no. 1.4571 Screw material : stainless steel, material no. 1.4571 Niedax model no. : 853 G E5

Property Value
Material: stainless steel
Diameter: 24 to 29 mm
Surface: other
Nominal diameter: 29 mm
Halogen-free: yes
Mounting type: threaded connection
Design: closed
Number of cables/pipes: 1
Suitable for fire protection areas: yes
UV-resistant: yes
Material quality: stainless steel (V4A)
Distance from the wall: yes
Plastic-coated: no

Characteristics

HAB853 G E5 M6 stainless steel for cable 24-29mm
Minimal order50 pcs
ManufacturerNiedax
HAN853GE5
GTIN4013339923489
VersionClosed
Mounting typeThreaded connection
Diameter24 to 29 mm
Halogen freeYes
Nominal diameter29 mm
SurfaceOther
UV-resistantYes
MaterialStainless steel
Material qualityStainless steel (V4A)
Niedax 853GE5 853 G E5 M6 stainless steel for cable 24-29mm pipe spacing clamps
Niedax 853GE5 853 G E5 M6 stainless steel for cable 24-29mm pipe spacing clamps
€6.87
Into a basketIn the basketGo
