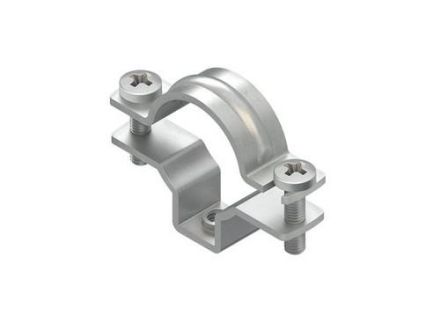

Pipe and cable spacing clamp, with internal connection thread M 6, for cables and electrical installation pipes in accordance with DIN EN 61386-21, when mounting on push-through anchor DAM 6X... or screw anchor NSA 6X55/SW10-M6, care must be taken to ensure that the connection thread of the push-through anchor does not protrude into the cable's clamping space, for screwing onto screw dowels with a thread length of up to 8 mm. For use in functional maintenance, please observe additional regulations! Dimensions (approx. dimensions) W x L: 16 x 79.5 mm Internal connection thread: M 6 for cable Ø: 38 - 47 mm for metric electrical installation conduits according to DIN EN 60423: M 40 Material: Steel, hot-dip galvanized according to DIN EN ISO 1461 Screw material: Stainless steel, material no. 1.4301, 1.4303 Niedax model no. : 855 G F
