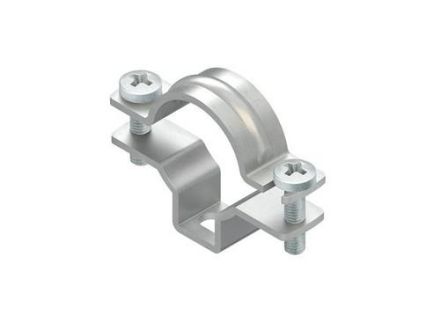

Niedax 856 M50 47-55mm pipe spacing clamps

In stock
SKU: 783833
€1.96
Into a basketIn the basketGo

Overview

Pipe and cable spacer clamp, with long fastening hole, for cables and electrical installation pipes in accordance with DIN EN 61386-21, for screwing on with push-through anchor DAM 6X... or screw anchor NSA 6X.../FKK-T30. Dimensions (approx. dimensions) W x L : 18 x 89 mm Long fastening hole : 6.4 x 10 mm for cable Ø : 47 - 55 mm for metric electrical installation pipes in accordance with DIN EN 60423 : M 50 Material : steel, strip-galvanized in accordance with DIN EN 10346 Screw material : steel, electrogalvanized in accordance with DIN EN ISO 4042 Niedax model no. : 856

Property Value
Material: steel
Diameter: 47 ÷ 55 mm
Surface protection: strip galvanized
Nominal diameter: 55 mm
Halogen-free: yes
Mounting type: screw hole
Design: closed
Number of cables/pipes: 1
Suitable for fire protection areas: yes
UV-resistant: yes
Material quality: other
With distance from the wall: yes
Plastic-coated: no

Characteristics

HAB856 M50 47-55mm
ManufacturerNiedax
HAN856
GTIN4013339014200
VersionClosed
Mounting typeScrew hole
Diameter47 ÷ 55 mm
Halogen freeYes
Nominal diameter55 mm
Surface protectionStrip galvanized
UV-resistantYes
MaterialSteel
Material qualityOther
