Niedax AHB-153 EKLIPS rod fastening

In stock
SKU: 791184
€1.28
Into a basketIn the basketGo

Overview

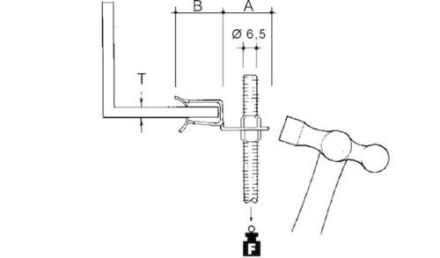

E-clips, flange claw 180°, for hammering onto various support flanges, for threaded rod suspension. Dimensions (approx. dimensions) for flange thickness T : 1.5 - 3 mm Impact depth B : 12.5 mm Distance between tabs to flange edge A : 22 mm Connection hole : Ø 6.5 mm Load capacity F : 0.2 kN Material : Steel, mechanically galvanized/passivated in accordance with DIN EN ISO 9227

Property Value
Material: Spring steel
Suitable for flange thickness: 1.5 to 3 mm
Mounting type: Spring clamp
Connection type/component: Hole
Hinged: no
Hinge adjustable: no
Surface: galvanized/electrolytically galvanized

Characteristics

Hinge adjustableNo
Suitable for flange thickness1.5 to 3mm
Connection type/componentHole
HABAHB-153
Minimal order100 pcs
ManufacturerNiedax
HANAHB-153
GTIN4013339746187
Mounting typeSpring clamp
SurfaceGalvanized/electrolytically galvanized
HingedNo
MaterialSpring steel
