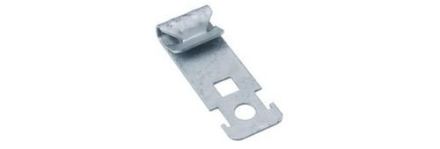

E-clips, flange claw, for attaching to various support flanges angled at 90°. Dimensions (approx. dimensions) for flange thickness T : 1.5 - 5 mm Impact depth B : 14 mm Connection fastening hole : Ø 6.5 mm center distance to the upper edge Impact angle : 42 mm Additional fastening hole : 6.5 mm center distance to connection fastening hole : 12 mm Load capacity F : 0.72 kN Material : Steel, mechanically galvanized/passivated in accordance with DIN EN ISO 9227
