Niedax B18AL B 18 AL clamp

In stock
SKU: 785561
€2.90
Into a basketIn the basketGo

Overview

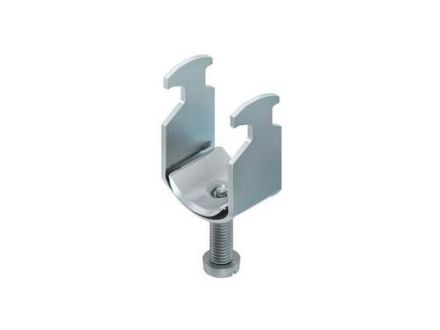

Hammer foot U-clamp, with pressure pan and screw according to DIN EN ISO 1207, made entirely of aluminum, suitable for Niedax anchor channels 2970-2980 with 16-17 mm slot width, counter pan (GW...) must be ordered separately. Assignment: 1 cable for cable Ø: 14 - 18 mm

Property Value
Clamping range: 14 ÷ 18 mm
Clamp material: Aluminium
Screw material: Aluminium
Mounting type: U-profile
Halogen-free: yes
Clamp surface protection: untreated
Surface protection Screw: untreated
For pipe size PG: 9
For pipe size (metric): 18
Max. Number of cables: 1
Material quality of the clamp: other
Material of the tray: aluminium
Material quality of the tray: other
Surface protection of tray: untreated
Material quality of the screw: other
With counter tray: no

Characteristics

HABB 18 AL
Minimal order100 pcs
ManufacturerNiedax
HANB18AL
GTIN4013339069101
Halogen freeYes
Mounting typeU-profile
Niedax B18AL B 18 AL clamp
