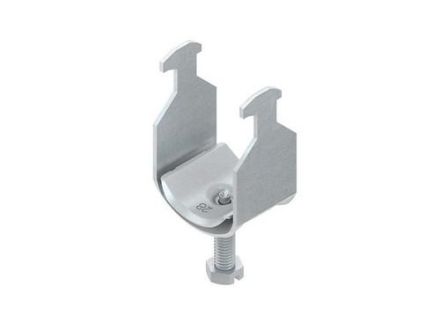

Niedax BA26/2 for cable D: 22-26mm hot-dip galvanized hammer foot clamp

In stock

SKU: 789895

Price on request

€2.50

€0

Overview

Hammer foot clamp, with strip-galvanized steel pressure pan according to DIN EN 10346, hammer foot bracket hot-dip galvanized according to DIN EN ISO 1461, suitable for NIEDAX series/anchor rails (2910-2920) with 11-12 mm slot width, counter pans (GWA/GWS...) and double pans (DW...) must be ordered separately. Allocation one above the other: 2 cables for cable Ø: 22 - 26 mm

Property	Value
Clamping range:	22.00 ÷ 22.00 mm
Material of the clamp:	steel
Material of the screw:	steel
Mounting type:	profile rail
Halogen-free:	yes
Surface protection of clamp:	hot-dip galvanized
Surface protection screw:	hot-dip galvanized
For pipe size PG:	16.00
For pipe size (metric):	26.00
Max. Number of cables:	2
Material quality of the clamp:	other
Material of the tray:	steel
Material quality of the tray:	other
Surface protection of tray:	strip-galvanized
Material quality of the screw:	other
With counter tray:	no
