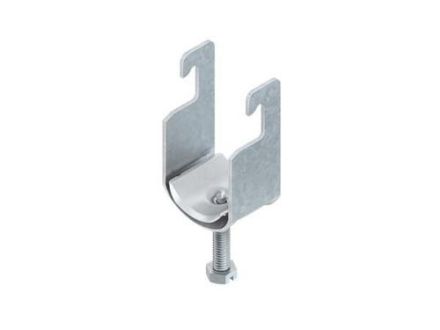

Niedax BU30 for cable D: 22-30mm hot-dip galvanized universal clamp

In stock
SKU: 783985
€1.89
Into a basketIn the basketGo

Overview

Universal U-clamp, with strip-galvanized steel pressure pan according to DIN EN 10346, hammer foot bracket hot-dip galvanized according to DIN EN ISO 1461, suitable for NIEDAX anchor rails (2985-2996Z) with 18-22 mm slot width, counter pans (GWU/GWS...) must be ordered separately. Please note additional regulations for use in functional maintenance! Assignment: 1 cable for cable Ø: 22 - 30 mm

Property Value
Clamping range: 26 ÷ 30 mm
Clamp material: steel
Screw material: steel
Mounting type: profile rail
Halogen-free: yes
Clamp surface protection: hot-dip galvanized
Surface protection Screw: hot-dip galvanized
For pipe size PG: 21
For pipe size (metric): 30
Max. Number of cables: 1
Material quality of the clamp: other
Material of the tray: steel
Material quality of the tray: other
Surface protection of tray: strip-galvanized
Material quality of the screw: other
With counter tray: no

Characteristics

HABFor cable D: 22-30mm hot-dip galvanized
Minimal order100 pcs
ManufacturerNiedax
HANBU30
GTIN4013339065301
Halogen freeYes
Mounting typeProfile rail
