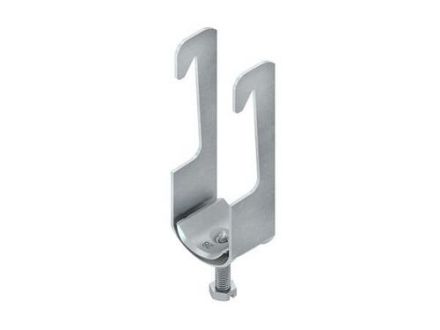

Niedax BW16 BW 16 12-16mm aluminum for angle iron bracket clamp

In stock

SKU: 786245

Price on request

€1.96

€0

Overview

U-clamp, for angle iron, with strip-galvanized steel pressure pan according to DIN EN 10346, bracket hot-dip galvanized according to DIN EN ISO 1461, can also be used on unequal-sided angle steel and U-iron with a maximum leg length of 40 mm, counter pans (GWU/GWS...) must be ordered separately. Allocation: 1 cable for cable Ø: 12 - 16 mm Angle ironDimensions H x W x t: 40 x 40 x 4-6 mm

Property	Value
Clamping range:	12 ÷ 16 mm
Clamp material:	Steel
Screw material:	Steel
Mounting type:	Angle profile
Halogen-free:	yes
Clamp surface protection:	hot-dip galvanized
Surface protection screw:	hot-dip galvanized
For pipe size PG:	9
For pipe size (metric):	16
Max. Number of cables:	1
Material quality of the clamp:	other
Material of the tray:	steel
Material quality of the tray:	other
Surface protection of tray:	strip-galvanized
Material quality of the screw:	other
With counter tray:	no
