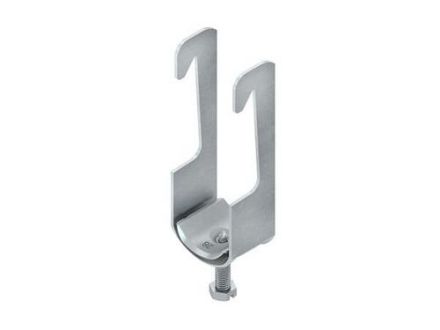

Niedax BW64 BW 64 clamp

In stock
SKU: 783916
€4.68
Into a basketIn the basketGo

Overview

U-clamp, for angle iron, with strip-galvanized steel pressure tray according to DIN EN 10346, bracket hot-dip galvanized according to DIN EN ISO 1461, can also be used on unequal-sided angle steel and U-iron with a maximum leg length of 40 mm, counter trays (GWU...) must be ordered separately. Allocation: 1 cable for cable Ø: 58 - 64 mm Angle ironDimensions H x W x t: 40 x 40 x 4-6 mm

Property Value
Clamping range: 58 ÷ 64 mm
Clamp material: Steel
Screw material: Steel
Mounting type: Angle profile
Halogen-free: yes
Clamp surface protection: hot-dip galvanized
Surface protection screw: hot-dip galvanized
For pipe size PG: 48
For pipe size (metric): 64
Max. Number of cables: 1
Material quality of the clamp: other
Material of the tray: steel
Material quality of the tray: other
Surface protection of tray: strip-galvanized
Material quality of the screw: other
With counter tray: no

Characteristics

HABBW64
Minimal order50 pcs
ManufacturerNiedax
HANBW64
GTIN4013339057405
Halogen freeYes
Mounting typeAngle profile
