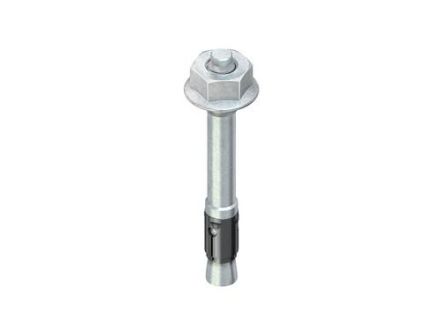

Through-bolt anchor with metric connection thread M 6, including galvanized flange nut. Permissible loads for centric tension, transverse load and diagonal tension at any angle as well as anchor characteristics and component dimensions for concrete strength classes B 25 or C 20/25 and B 55 or C 50/60. The entire approval certificate no.: ETA-18/0541 must be observed when dimensioning! For outdoor areas we recommend through-bolt anchors made of stainless steel! For use in functional maintenance or for suspended ceilings with fire protection requirements (model pipe system guideline MLAR 2/2015) please note additional regulations! Area of application: The anchor may be used as a multiple fastening for anchoring light ceiling cladding and suspended ceilings in accordance with DIN 18168, as well as for statically comparable anchoring up to 1 kN/m - also in the tensile zone generated by load stresses. When setting the through-bolt anchor, ensure that the effective anchoring depth is maintained. Compliance is ensured by adhering to the permissible attachment thickness (clamping range). Technical details Connecting thread: M 6 Total length L: 55 mm Nominal drilling: 6 mm Clamping range t fix: 10 mm Effective anchoring depth h ef: 30 mm Recommended torque: 4 Nm Wrench size: 10 Material: Steel, galvanized in accordance with DIN EN ISO 2081/4042, blue passivated Approval no. : ETA-18/0541 Please note further approvals: DoP NI001
