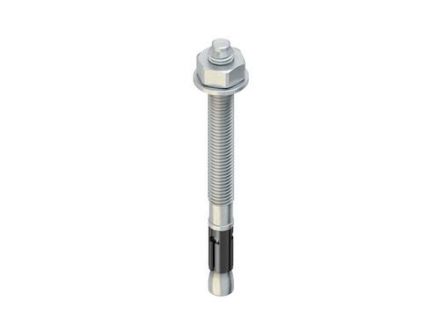

Through-bolt anchor, including zinc-plated nut and zinc-plated washer. For use in functional maintenance please observe additional regulations! Maximum permissible loads (the partial safety factors for the resistances specified in the approval as well as a partial safety factor of Y (F) = 1.4 are taken into account. When combining tensile and shear loads, edge influences and anchor groups, please observe design method A (ETAG Appendix C) ) of an anchor in normal concrete C20/25 (the concrete is assumed to be normally reinforced; with higher concrete strengths, values up to 55% higher are possible). The entire approval notice ETA-05/0069 must be observed when designing. For outdoor areas we recommend stainless steel anchors! . Technical specifications: . Effective anchoring depth h (ef): 60 mm . Permissible centric tensile load of a single anchor without edge influence N (zul) (ie for tensile load - edge distance c = 1.5 h (ef) and axial distance s = 3 h (ef) or for shear load - edge distance c = 10 h (ef) and axial distance s = 3 h (ef) ) Cracked concrete C20/25 : 4.3 kN Non-cracked concrete C20/25 : 7.6 kN . Permissible shear force of a single anchor without edge influence V (zul) (ie for tensile load - edge distance c = 1.5 h (ef) and axial distance s = 3 h (ef) or for shear load - edge distance c = 10 h (ef) and axial distance s = 3 h (ef) ) Cracked and non-cracked concrete C20/25 : 11.4 kN . Permissible bending moment (M (d) ) M (zul) : 30 Nm . Component dimensions and installation parameters (The values in brackets only apply to non-cracked concrete) : Standard component thickness (= 2 xh (ef) ) h (min.1) : 120 mm Minimum centre distance s (min) : 40 mm Minimum centre distance for c = : 55 (60) mm Minimum edge distance c (min) : 45 mm Minimum edge distance for s = : 80 mm . Reduced component thickness (< 2 xh (ef) ) h (min.2) : 100 mm Minimum center distance s (min) : 40 mm Minimum center distance for c = : 100 mm Minimum edge distance c (min) : 60 mm Minimum edge distance for s = : 90 mm Nominal bore diameter d (0) : 10 mm Borehole ti
