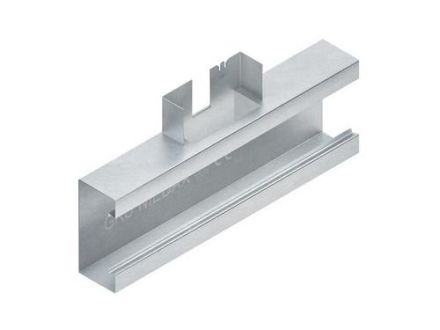

Niedax GKT110-78R 90° single-pass 110x61mm pure white T-piece

In stock
SKU: 789260
€66.63
Into a basketIn the basketGo

Overview

Device duct T-piece 90°, made of strip-galvanized steel in accordance with DIN EN 10346, visible surfaces electrostatically powder-coated in RAL color according to manufacturer's catalog, without bottom tabs for holding the dividers, the potential equalization is carried out via the potential equalization cable GSLH... and the joint connector GSTA... or the potential equalization terminal GPK 63, if these are electrically connected to the duct base, accessories for the potential equalization must be ordered separately. Continuous duct height = outgoing duct height!certified! Dimensions (approx. dimensions) H x D : 110 x 61 mm Length : 400 mm Lid opening : 78 mm Colour : pure white RAL : 9010

Property Value
Width: 110 mm
Depth: 61 mm
Width of branch: 110 mm
RAL number: 9010
Number of top parts: 1
Top part width 1: 78 mm
Symmetrical: yes
Design: Lower part
Material: Steel
Material quality: other
Halogen-free: yes
Surface: strip-galvanized and coated
With protective film: yes
With channel connector: no
Mounting holes in the base: yes
Mounting type of upper parts: internal
With cable retaining clip: no

Characteristics

HAB90° single-pass 110x61mm pure white
ManufacturerNiedax
HANGKT110-78R
GTIN4013339373406
VersionBottom part
Width110 mm
Halogen freeYes
SurfaceStrip galvanized and coated
RAL number9010
Depth61 mm
MaterialSteel
Material qualityOther
Niedax GKT110-78R 90° single-pass 110x61mm pure white T-piece
Niedax GKT110-78R 90° single-pass 110x61mm pure white T-piece
€66.63
Into a basketIn the basketGo
