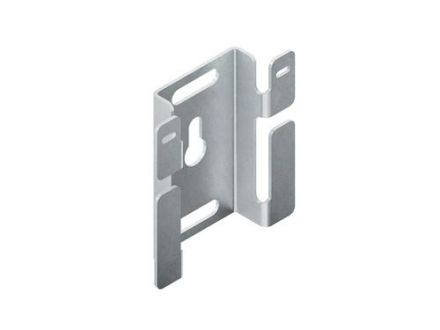

Mounting bracket, for screwless wall mounting (hanging in) of the mesh trays with a width of 100 mm and at least two lateral longitudinal wires with a central distance of 25 mm and 50 mm, for central threaded rod suspension M 10 of mesh trays up to a width of 300 mm and at least two longitudinal wires in the floor with a central distance of 25 mm and 50 mm. Use for: Mesh cable trays with wire Ø 5 mm Use for wall mounting: GR 60.100 GRS 60.100 GRC 60.100 MTC 54.050 (wall mounting only) MTC 54.100 MTC 105.100 MTCG 50.100 Use for central suspension: GR 60.100 - ... .300 GRS 60.100 - ... .300 GRC 60.100 - ... .300 MTC... .100 - ... .300 MTCG 50.100 Dimensions (approx. dimensions) Height H x Width W x Depth D : 75 x 45 x 16 mm Horizontal mounting holes : 7 x 25 mm Keyhole : 7 x 22 mm, Ø 11.5 mm Material : Stainless steel, material No. 1.4301, 1.4303
