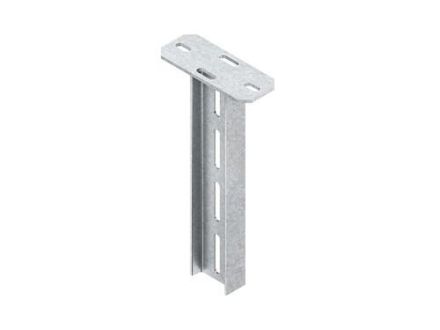

Suspended post, I 80 profile according to DIN 1025 with welded head plate, system HI 80/..., for clamping brackets, for installation on one or both sides (horizontally at the same height or offset in height). For static reasons and to enable the protective cap to be fitted without problems, the bracket must be mounted at a distance of x=50 mm (bottom edge of the bracket to the end of the suspended post), above the end of the suspended post. certified! for boom: KTT... 600 mm length KTTS... 1000 mm length Dimensions (approx. dimensions) Head plate L x W x t: 200 x 80 x 6 mm Mounting holes: 13 x 28 mm center distance: 152 mm Mounting holes: 13 x 38 mm center distance: 50 mm I-profile: 80 x 42 mm Profile holes, single row: 13 x 75 mm center distance: 100 mm Total length L: 1006 mm Material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461
