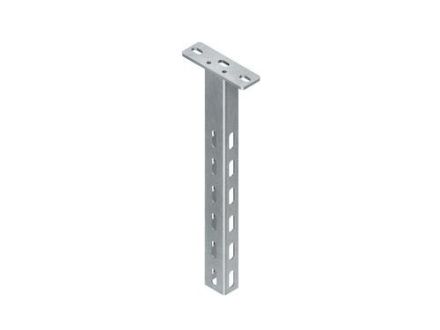

Suspended post, U-profile perforated on 3 sides with welded head plate, system HU 4530/..., for booms for one-, two- and three-sided installation, in order to prevent the deformation of the suspended post profile when installing the boom, the suspended post spacer profile HDS 45.30 E5 with hexagon screw must be taken into account for static reasons, when attaching the boom to the suspended post profile on one side, the closed side of the boom should preferably be aligned with the profile web of the suspended post. For static reasons and to enable the protective cap to be fitted without problems, the boom must be mounted at a distance of x=50 mm (bottom edge of boom to end of suspended post), above the end of the suspended post. for booms: KTAL... KTAM... 400 mm KTA... 400 mm Dimensions (approx. dimensions) Head plate L x W xt: 130 x 40 x 5 mm Fastening holes: 11 x 20 mm Center distance: 100 mm Head plate holes, center: 11 x 20 mm 15 mm from the side edge of the U-profile: 43.5 x 29.5 x 29.5 mm Material thickness t: 2 mm Distance between three-sided profile holes and head plate: 123 mm Three-sided profile holes, single row: 11 x 30 mm Center distance: 50 mm Total length L: 301 mm Material: Stainless steel, material no. 1.4571
