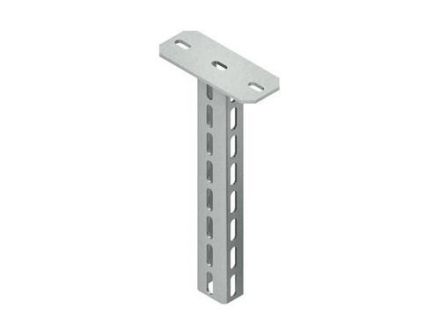

Suspended post, U-profile with continuous perforations on 3 sides and welded-on head plate, system HU 6040/..., for booms for one-, two- and three-sided installation, in order to prevent the deformation of the suspended post profile when installing the boom, the suspended post spacer profile HDS 60.40 F with hexagon screw must be taken into account for static reasons, when attaching the boom to the suspended post profile on one side, the closed side of the boom should preferably be aligned with the profile web of the suspended post. For static reasons and to enable the protective cap to be fitted without problems, the boom must be mounted at a distance of x=50 mm (bottom edge of the boom to the end of the suspended post), above the end of the suspended post. For use in functional maintenance, please observe additional regulations!certified! for boom: KTAL... KTAM... KTA... KTAS... for boom: KTAS 100 - 400 (functional retention/KFO) Dimensions (approx. dimensions) Head plate L x W xt: 200 x 80 x 6 mm Fastening holes: 13 x 28 mm Center distance: 152 mm U-profile: 40 x 60 x 40 mm Material thickness t: 4 mm Three-sided profile holes, single row: 13 x 40 mm Center distance: 50 mm Total length L: 806 mm Material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461
