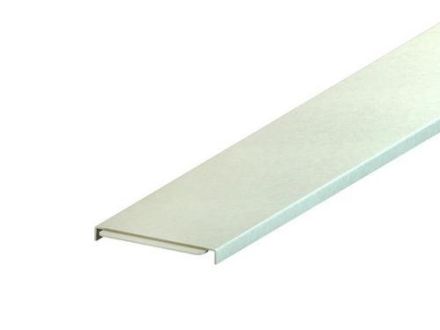

GRP cover for cable tray, pressed, with molded tab to reduce deflection at the cover joint, protect against the ingress of dirt and increase stability with the adjacent cover, halogen-free. Fastening can be carried out using cover retaining springs DF ... E4, cover fastenings DF M or DFUB 5.5X19 E4, 2 pieces per meter (please order separately). Due to external influences, such as wind loads, the number of cover retaining springs or cover fastenings must be increased. To ensure correct and stable installation, it is important to ensure that the joints of the covers have a minimum distance of 3 mm and are offset from the joint of the cable trays. Article also available in ...AC (resin mixture with acrylic resin). Can be used for: GRP cable trays KKL 50.050 KK 50.050 Dimensions (approx. dimensions) H (outside) x W (inside): 23 x 55 mm Material thickness t: 2.75 mm Delivery length L: 3000 mm Material: UP-GF (glass fiber reinforced polyester) Color: pebble gray RAL: 7032 (similar)
