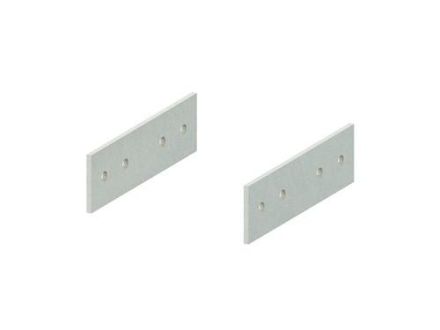

GRP joint connector, pressed, horizontal, screwable, for a longitudinally aligned connection of the cable trays and their fittings at the joint, please order appropriate fastening accessories FKM 6X16 E4 separately, halogen-free. An expansion distance of approx. 8 mm must be taken into account during assembly. Article also available in ...AC (resin mixture with acrylic resin). Can be used for: GRP cable tray KK 50... GRP cable tray KKL 50... and their fittings Required: 1 pair (2 pieces) per joint Dimensions (approx. dimensions) H x L: 25 x 120 mm Material thickness t: 3 mm Fastening holes, single row: Ø 6.5 mm Center distance: 25 mm, 40 mm, 25 mm Material: UP-GF (glass fiber reinforced polyester) Color: pebble gray RAL: 7032 (similar)
