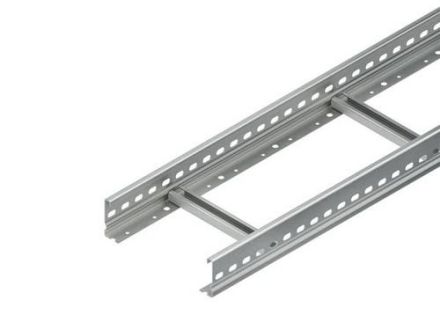

Cable ladder according to DIN EN 61537, with continuously perforated and profiled side rails, with riveted rungs made of C-profiles with 11 mm slot width. Matching U-clamps (BA... and BAK...). Dimensions (approx. dimensions) H x W: 60 x 400 mm Material thickness of the beam: 1.5 mm Rung spacing: 300 mm Side beam holes: 9 x 15 mm center distance: 25 mm Floor holes: Ø 8.5 mm center distance: 100 mm Delivery length L: 6000 mm Transport length: 6000 mm + W Usable cross-section: 17200 mm² Material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461
