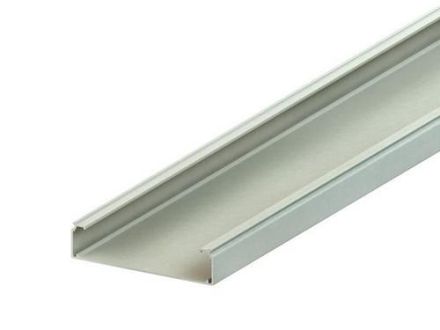

GRP cable tray, pultruded, with unperforated side rails and without base perforations, mechanical strength according to IEC 61537, please order appropriate fastening accessories separately, halogen-free. The joint connector KPGH 80 is not included in the scope of delivery, please order separately. When installing the joint connector KPGH 80, the expansion distance of the cable trays of approx. 3 mm must be taken into account. Due to the expansion of the material, the following must be observed during installation: - The cable tray should not be screwed close to or at the joint. - When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray. Article also available in ...AC (resin mixture with acrylic resin). Dimensions (approx. dimensions) H x W: 80 x 150 mm Material thickness t: 2.5 - 3.1 mm Delivery length: 3000 mm Usable cross-section: 10690 mm² Material: UP-GF (glass fiber reinforced polyester) Color: pebble gray RAL: 7032 (similar)
