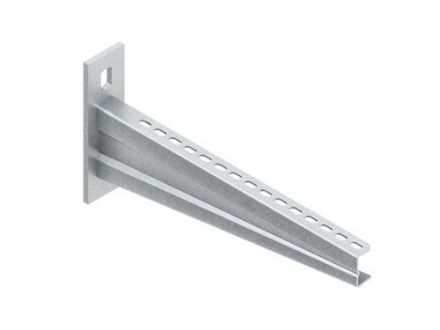

Wall bracket, very heavy duty design, for wall mounting, please order required fastening accessories for cable trays/ladders and wide span cable trays/ladders separately. The load-bearing capacity details only apply if the structure is sufficiently anchored to the load-bearing substrate (min. concrete C20/25) and the DAZ 16X25 dowel is used in non-cracked concrete, taking into account the approval certificate ETA-18/0542. In any case, the introduction of loads into the structure must be coordinated with the building planner or construction management. Dimensions (approx. dimensions) Support height H: 158 mm Support length L: 730 mm Load-bearing capacity F at L/2: 10 kN tested in the system, applies to the bracket regardless of the anchoring. Load-bearing capacity F2 at L/2: 8.5 kN tested in the system, applies to central load introduction and in conjunction with DAZ 16X25 dowel. In case of different load introductions (asymmetric load introduction) a formula must be used to calculate the load-bearing capacity. Please contact us if necessary. Boom material: steel, hot-dip galvanized in accordance with DIN EN ISO 1461
