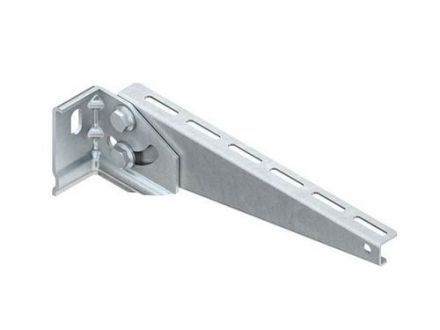

Wall bracket, adjustable, adjustment range +25° to -60°, for fastening to sloping walls, e.g. in the area of concrete pipes and tunnels, including hot-dip galvanized fastening accessories. The load-bearing capacity information only applies if the wall is sufficiently anchored to the supporting surface and the screws are tightened to a maximum torque of 123 Nm. Please note: The bracket used, with an inclination of the bracket connection angle of up to 60°, depends on the height available to the sloping ceiling/wall and the required width of the cable tray. Dimensions (approx. dimensions) Support height H : 94 mm Width of the connection angle B : 52 mm Total width B1 : 76 mm Support length L : 315 mm Total length L1 : 340 mm Load capacity F at L/2 : 1.55 kN tested in the system Material boom : steel, hot-dip galvanized according to DIN EN ISO 1461
