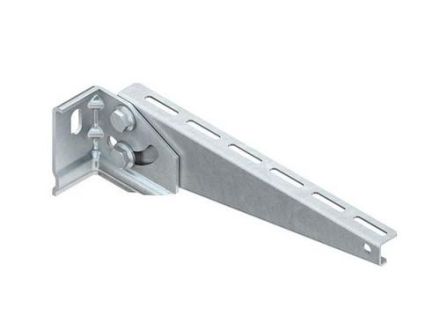

Niedax KTVW 550 F 90x565mm adjustment range +25°/-60° wall bracket

In stock
SKU: 794176
€74.67
Into a basketIn the basketGo

Overview

Wall bracket, adjustable, adjustment range +25° to -60°, for fastening to sloping walls, e.g. in the area of concrete pipes and tunnels, including hot-dip galvanized fastening accessories. The load-bearing capacity information only applies if the wall is sufficiently anchored to the supporting surface and the screws are tightened to a maximum torque of 123 Nm. Please note: The bracket used, with an inclination of the bracket connection angle of up to 60°, depends on the height available to the sloping ceiling/wall and the required width of the cable tray. Dimensions (approx. dimensions) Support height H : 94 mm Width of the connection angle B : 52 mm Total width B1 : 76 mm Support length L : 565 mm Total length L1 : 590 mm Load capacity F at L/2 : 1.1 kN tested in the system Material boom : steel, hot-dip galvanized according to DIN EN ISO 1461

Property Value
Height: 94 mm
Width: 76 mm
Length: 590 mm
Load capacity: 1.1 kN
Material: Steel
Material quality: other
Suitable for functional integrity: no
Suitable for cable support system width: 100 to 500 mm
Design: Wall bracket
Angle: -25 to 60 °

Characteristics

Suitable for Functional integrityNo
HAB90x565mm adjustment range +25°/-60°
ManufacturerNiedax
HANKTVW 550 F
GTIN4013339086962
VersionWall bracket
Width76 mm
Height94 mm
Length590 mm
MaterialSteel
Material qualityOther
Niedax KTVW 550 F 90x565mm adjustment range +25°/-60° wall bracket
Niedax KTVW 550 F 90x565mm adjustment range +25°/-60° wall bracket
