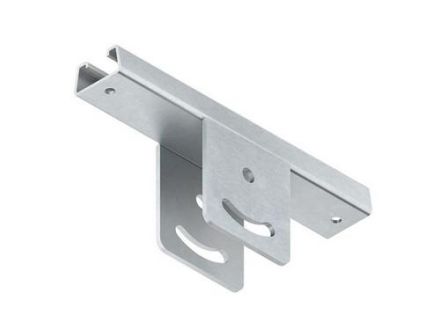

Clamping head plate, rail profile with two welded connection plates with a vertical adjustment range of max. +/- 30°, for clamping fastening for horizontal but longitudinally inclined support profiles with support flange widths of max. 240 mm, for cable tray runs parallel to the support, including hot-dip galvanized proportional fastening accessories, please order required clamping accessories for support profiles such as 2 x HSKS... and 2 x HK 612/... F separately. for profile: U 5050/... Dimensions (approx. dimensions) Rail profile L x W x H: 300 x 56 x 30 mm Profile slot width: 22 mm Connection plate perforation: Ø 14 mm and 13 mm x 60° center distance: 50 mm Total length L: 135 mm Material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461 Ceiling support abbreviation in accordance with DIN: [customer information required]
