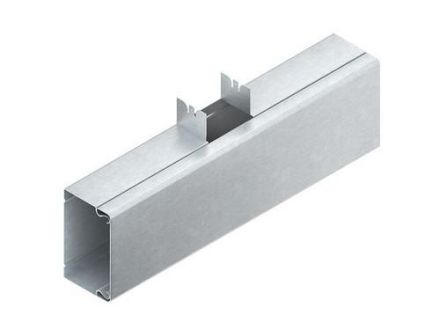

Cable protection duct T-piece 90°, with snap-on cover, duct base unperforated, connection lugs with earthing tab aligned with the duct, these must be bent up once on site at a right angle to the pre-formed notches for the outlet, visible surfaces electrostatically powder-coated in RAL color according to the manufacturer's catalog, the potential equalization takes place between the ducts via the butt connector LST... and the potential equalization cable GSLH... (please order separately), with the covers automatically when snapped on. Certified! Use for: Cable protection ducts LLK... / LUK... Dimensions (approx. dimensions) Main direction H x W: 60 x 100 mm Outlet H x W: 60 x 60 mm The height of the outlet corresponds to the height of the main direction! Length L: 350 mm Color: cream white RAL: 9001 (similar) Material: steel, strip galvanized according to DIN EN 10346
