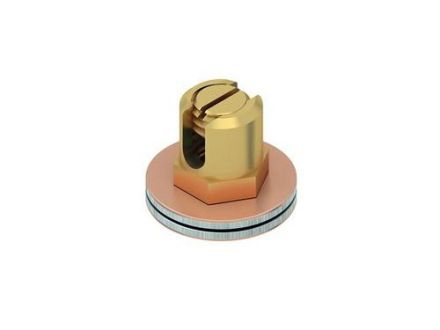

Niedax MTEKM 6x25 MS M12 for mesh cable trays 6- 25qmm earthing terminal

In stock
SKU: 795090
€5.52
Into a basketIn the basketGo

Overview

Earthing terminal, with threaded pin M 12, 2 washers Ø 30 mm and screw M 6X12, to ensure potential equalization for mesh cable trays with a central longitudinal wire spacing of max. 25 mm as well as all common cable trays with holes Ø 6 - Ø 7 mm for the connection of potential equalization/earthing cables - multi-wire or solid - indoors. In the case of an insulated conductor, the insulation must be removed over a length of 30 mm. Use for: Mesh trays MTC 54... MTC 105... MTS 54... MTS 105... Cable trays Dimensions (approx. dimensions) Height H: 28 mm Diameter: Ø 30 mm Clamping range: 6 - 25 mm² Material clamp/threaded pin: Brass, tinned Material washers: Aluminium alloy, copper-coated Material screw: Steel, galvanised in accordance with DIN EN ISO 4042, blue passivated

Property Value
Suitable for: Round conductors
Connection cross-section: 6 to 25 mm²
Material: Brass
Surface: tinned

Characteristics

HABM12 for mesh cable trays 6- 25qmm
ManufacturerNiedax
HANMTEKM 6x25 MS
GTIN4013339168125
Suitable forRound ladder
SurfaceTinned
MaterialBrass
