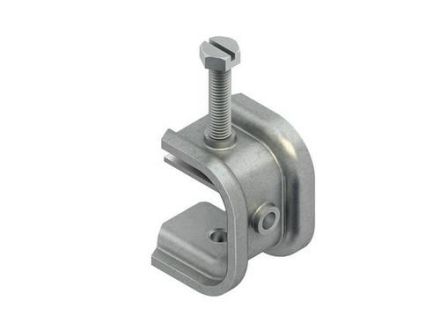

Profile clamp including M 8 stud screw with slotted hexagon head and clamping plate, for clamping to support profiles with parallel flanges or with inclined flanges up to a maximum of 14% inclination and as a supply line to the energy consumers. The fastening materials used can vary depending on the application! Dimensions (approx. dimensions) H x W x L: 57 x 40 x 47 mm Threaded connections: M 8 Load capacity vertical nominal load F1: 1.8 kN Load capacity vertical nominal load F2: 1.6 kN Flange thickness of the beam t: 6 - 35 mm Screw tightening torque: 4 Nm Wrench size: SW 13 Material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461
