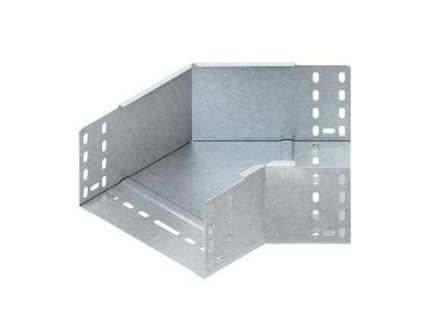

Niedax RBA110.150F 45° for KR 110x152mm hot-dip galvanized bend

In stock
SKU: 786920
€74.46
Into a basketIn the basketGo

Overview

45° bend, with unperforated side rails, with connector holes for connection, for cable trays, for producing 45° horizontally angled cable trays, with integrated butt connectors, including hot-dip galvanized proportional fastening accessories. for cable trays: 110 mm edge height Dimensions (approx. dimensions) inside H x W: 110 x 152 mm Material: steel, hot-dip galvanized according to DIN EN ISO 1461

Property Value
Cable tray height: 110 mm
Cable tray width: 150 mm
Material thickness: 1 mm
Inner radius: 100 mm
Change of direction: horizontal
Suitable for functional integrity: no
Design: integrated connector
Material: steel
Side holes: no
Mounting holes in the base: no
NATO hole pattern: no
Wide span design: no
Stainless steel, pickled: no
Material quality: other
Design: rigid arch
With upper part: no
Arch design: smooth arch

Characteristics

Suitable for Functional integrityNo
Material thickness1 mm
HAB45° for KR 110x152mm hot-dip galvanized
ManufacturerNiedax
HANRBA110.150F
GTIN4013339547456
VersionIntegrated connector
DesignBow rigid
MaterialSteel
Material qualityOther
Niedax RBA110.150F 45° for KR 110x152mm hot-dip galvanized bend
Niedax RBA110.150F 45° for KR 110x152mm hot-dip galvanized bend
€74.46
Into a basketIn the basketGo
