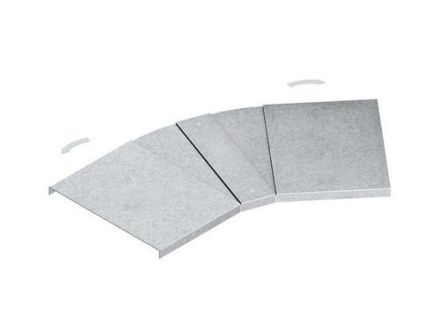

Cover for angle-adjustable fitting, without twist-lock fasteners, height-independent cover for angle-adjustable cable tray fittings, for flexibly adjustable horizontal direction guidance in an angle range of 0°-90°, overlapping cover at the joints. The cover is attached exclusively using the cover retaining spring RDHF 9 E2. This was designed exclusively for the horizontal cover position. When attaching, ensure that a minimum distance of 50 mm is maintained from the beginning/end of the cover. Due to external influences, such as wind loads, use outdoors is only possible with additional security (self-tapping screws, steel band, etc.).certified! for angle-adjustable fittings: RBAV ... Requirement: 4 x RDHF 9 E2 per cover please order separately Dimensions (approx. dimension) B (inside): 72 mm Material: Steel, strip galvanized in accordance with DIN EN 10346
