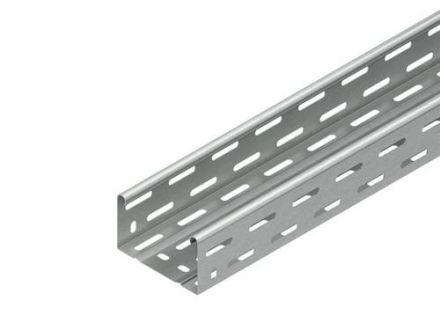

Cable tray, in accordance with DIN EN 61537, with offset floor and side perforations for stepless fastening and attachment of the system components and with continuous central hole perforation for suspension with threaded rods M 10/..., continuous beads in the floor ensure a quick, positive-locking longitudinal connection by locking the screwless joint connectors RVC 60 (for MLAR system connector RVC 60/2) with the side rails, please order two screwless joint connectors RVC 60 (for MLAR system two connectors RVC 60/2 and one joint strip RSLC ...) separately. For use for suspended ceilings with fire protection requirements (model wiring system guideline MLAR 2/2015) please note additional regulations! For use in functional maintenance please note additional regulations! Dimensions (approx. dimensions) H x W: 60 x 100 mm Material thickness: 0.9 mm Center hole: Ø 11 mm Delivery length: 3000 mm Usable cross section: 5800 mm² Material: Steel, strip galvanized according to DIN EN 10346
