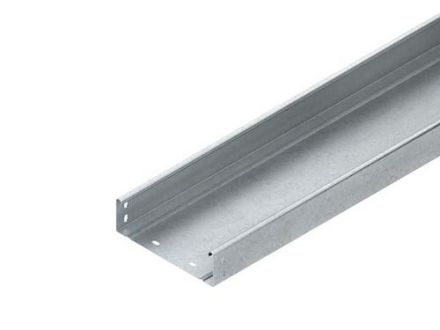

Niedax RLUC60.150 light 60x150x3000mm T: 0.9mm unperforated cable tray

In stock
SKU: 790308
€49.61
Into a basketIn the basketGo

Overview

Cable tray, according to DIN EN 61537, with unperforated side rails, with connector holes for the connection, continuous beads in the base ensure a quick, positive-locking longitudinal connection by locking the screwless connectors RVC 60 with the side rails, including one-piece screwless joint connector RVC 60... and corresponding fastening accessories. Dimensions (approx. dimensions) H x W: 60 x 150 mm Material thickness: 0.9 mm Delivery length: 3000 mm Usable cross-section: 8800 mm² Material: Steel, strip galvanized according to DIN EN 10346

Property Value
Height: 60 mm
Width: 150 mm
Length: 3000 mm
Material: Steel
Surface: strip galvanized
Suitable for functional integrity: no
Material thickness: 0.9 mm
Side holes: no
Usable cross-section: 8980 mm²
Mounting holes in the base: no
NATO hole pattern: no
Design: connector supplied
Wide span design: no
Stainless steel, pickled: no
Material quality: other
With upper part: no

Characteristics

Suitable for Functional integrityNo
Material thickness0.9 mm
HABLight 60x150x3000mm T: 0.9mm unperforated
Minimal order3 meter
ManufacturerNiedax
HANRLUC60.150
GTIN4013339870264
VersionSupplied connector
Width150 mm
Height60 mm
Length3000 mm
SurfaceStrip galvanized
MaterialSteel
Material qualityOther
