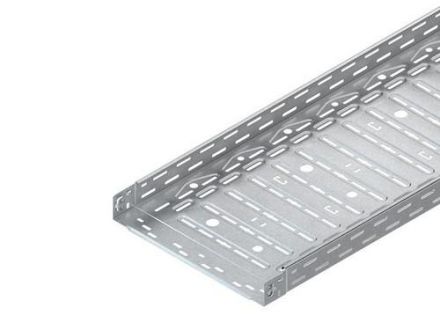

Cable tray, lightweight, in accordance with DIN EN 61537, with embossed joint connector for screwless quick fastening and with offset base and side perforations for stepless fastening and attachment of the system components, base additionally corrugated and provided with a continuous central keyhole perforation for suspension with threaded rods M 10/..., in addition, 4 rows of symmetrical base holes from the center allow cable screw connections to be accommodated, two rows of T-outlets also symmetrically installed in the base allow cable ties to be quickly fastened by looping them in from above (no threading effort). Please observe additional regulations for use in functional maintenance! Please order the required fastening accessories for functional maintenance 4x FLM 6X12 separately!certified! Dimensions (approx. dimensions) H x W: 60 x 400 mm Material thickness t: 0.9 mm Keyhole perforation: 7 x 40 mm and Ø 11 mm Spacing: 62.5 mm Inner symmetrical row of bottom holes: Ø 20.5 mm and Ø 25.5 mm Symmetrical spacing: 120 mm Spacing: 250 mm Outer symmetrical row of bottom holes: Ø 13.5 mm and Ø 16.5 mm Symmetrical spacing: 345 mm Spacing: 125 mm T-outlets: 14 x 30 mm Symmetrical spacing: 135 mm Spacing: 250 mm Delivery length L: 3000 mm Usable cross-section: 23800 mm² Material: Steel, hot-dip galvanized. according to DIN EN ISO 1461
