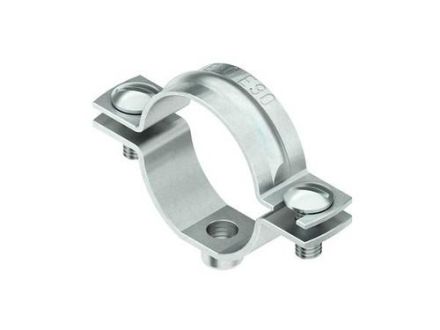

Screw spacing clamp, with internal connection thread M 6, for cables and electrical installation pipes in accordance with DIN EN 61386-21, when mounting on push-through anchor DAM 6X... or screw anchor NSA 6X55/SW10-M6, care must be taken to ensure that the connection thread of the push-through anchor does not protrude into the cable's terminal space, for fastening a cable or a metric pipe. For use in functional maintenance, please observe additional regulations! Dimensions (approx. dimensions) W x L: 18 x 89 mm Internal connection thread: M 6 for cable Ø: 47 - 55 mm for metric electrical installation conduits according to DIN EN 60423: M 50 Material: Steel, galvanized according to DIN EN ISO 2081, thick-film passivated Screw material: Steel, galvanized according to DIN EN ISO 4042, thick-film passivated Niedax model no. : SAS 55
