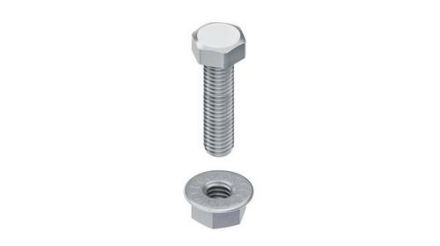

Hexagon screw according to DIN EN ISO 4017, including toothed flange nut according to DIN EN 1661. The strength class of the screw is stamped on the screw head. Especially for connections that have to transfer vertical loads via friction, it is essential to pay attention to the screw tightening torque and to check it with the torque wrench! In product combinations (hexagon screw with nut), the lower strength class should be used to determine the torque. Dimensions (approx. dimensions) Thread: M 10 Screw length: 90 mm Strength class screw: 8.8 Strength class nut: 8 Screw tightening torque: 48 Nm Material: Steel, hot-dip galvanized according to DIN EN ISO 10684
