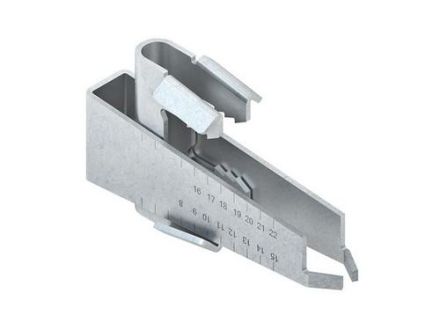

Niedax TKM3 8-20mm for threaded rod M12 vz beam clamp

In stock
SKU: 785992
€8.02
Into a basketIn the basketGo

Overview

Beam clamp, pre-assembled, for hitting beam flanges in accordance with DIN 1025 with a minimum dimension of 8 - 20 mm and a max. 14% incline or parallel flanges with a flange thickness of 8 - 20 mm, for vertical suspensions using a threaded rod, pre-assembly of the beam clamp with the threaded rod before assembly is possible. The beam clamp may only be loaded perpendicular to the beam! For threaded rod: M 12 Dimensions (approx. dimensions) Height H: 61 mm Width B: 21.5 mm Length L: 112 mm Beam flange thickness t: 8 - 20 mm Vertical nominal load F: 5 kN Material: Steel, strip galvanized in accordance with DIN EN 10346 Niedax model no. : TKM 3

Property Value
Material: Steel
Suitable for flange thickness: 8 to 20 mm
Breaking load: 5000 N
Thread size (metric): 12
Mounting type: other
Connection type/component: Thread
Hinged: no
Hinge adjustable: no
Surface: strip galvanized

Characteristics

Thread size (metric)12
Hinge adjustableNo
Suitable for flange thickness8 to 20 mm
Connection type/componentThread
HABTKM3 8-20mm for threaded rod M12 galvanized
Minimal order25 pcs
ManufacturerNiedax
HANTKM3
GTIN4013339092765
Mounting typeOther
SurfaceStrip galvanized
HingedNo
MaterialSteel
Niedax TKM3 8-20mm for threaded rod M12 vz beam clamp
Niedax TKM3 8-20mm for threaded rod M12 vz beam clamp
€8.02
