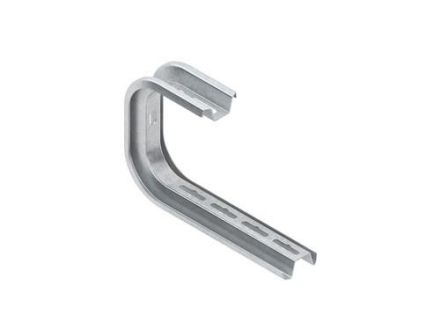

Support bracket, one-piece, for mounting on walls and horizontal ceilings, including appropriate fastening accessories. For static reasons, the TKSD 20 spacer must be installed for wall and ceiling mounting to avoid deformation of the trapezoidal profile when tightening the fastening screw. The TKSD 20 spacer is also required for mounting with cantilever fastening. Please order the SKM 10x70 fastening screw in accordance with DIN EN ISO 4017 separately. The load-bearing capacity information only applies if the supporting surface is sufficiently anchored. Dimensions (approx. dimensions) H x W x L : 172 x 57 x 261 mm upper bracket length L1 : 132 mm load-bearing capacity F at L/2 : 0.7 kN tested in the system Material : Steel, strip galvanized according to DIN EN 10346
